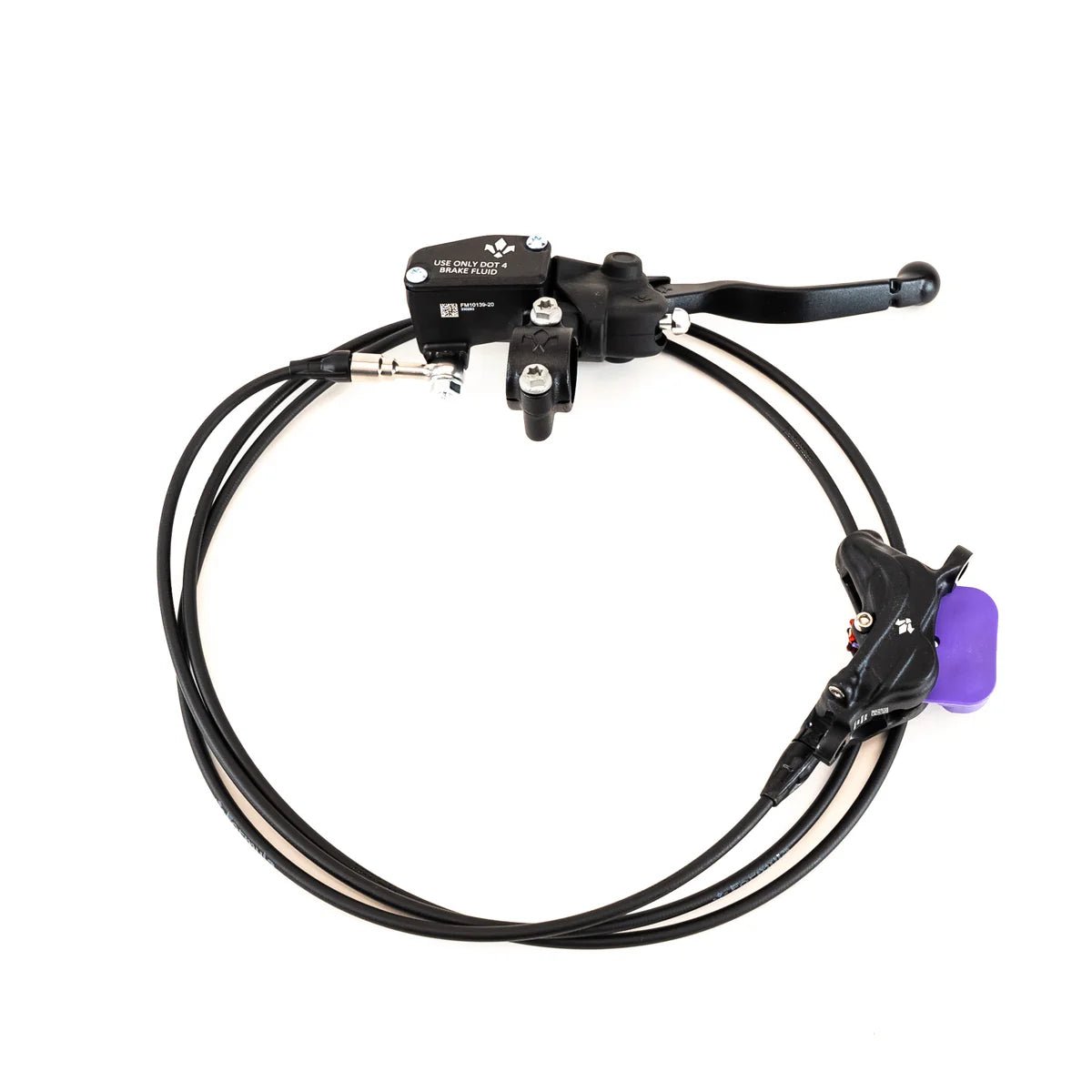

Formula Light E-moto Brake

Built for the lightweight eMoto category, the eMoto Brake delivers reliable, high-performance braking in a compact design—a true upgrade for your ride.

Enhanced Stopping Power

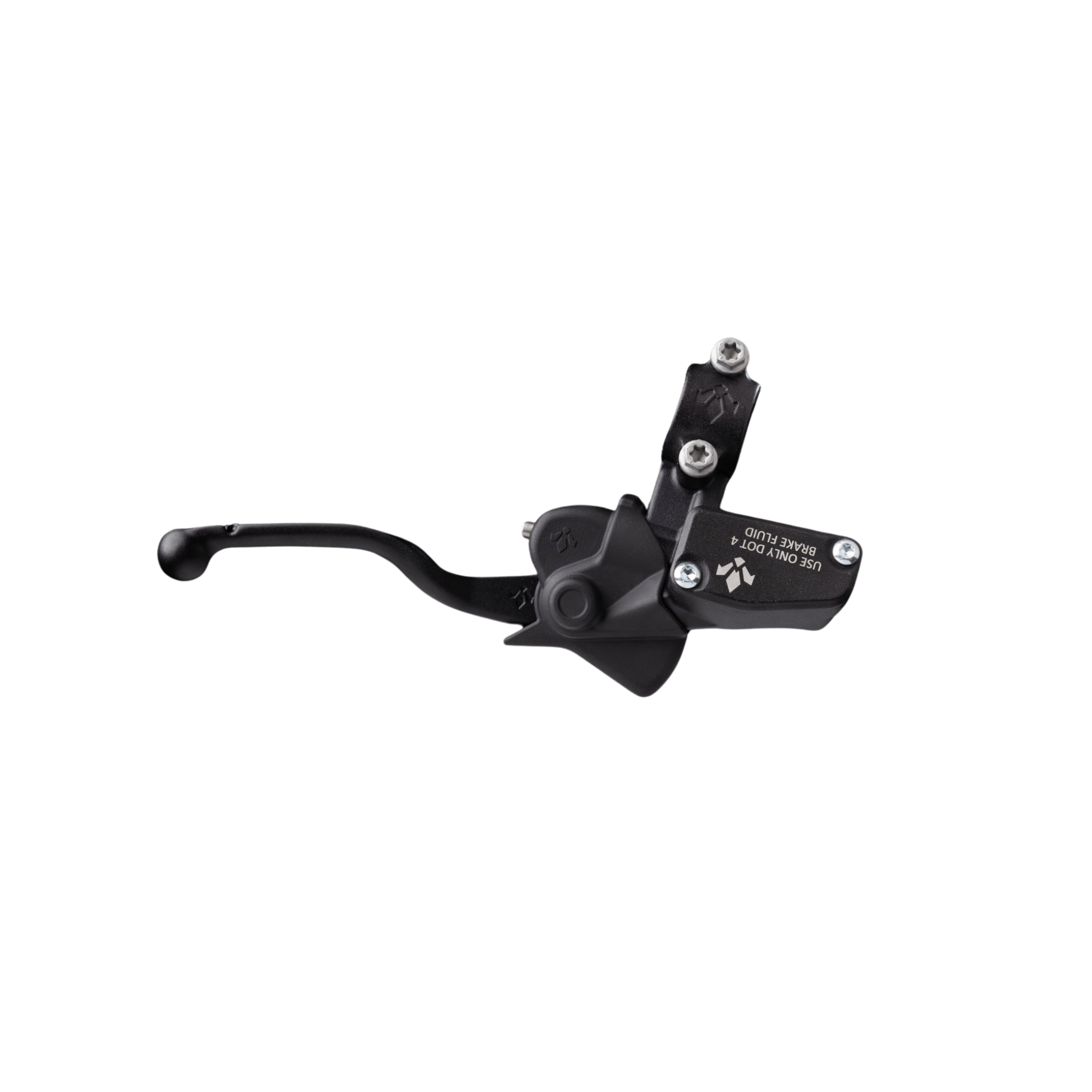

The brake system features a motorcycle master cylinder with increased oil capacity and a larger piston for powerful braking. Paired with the motorcycle lever, it delivers progressive, precise control.

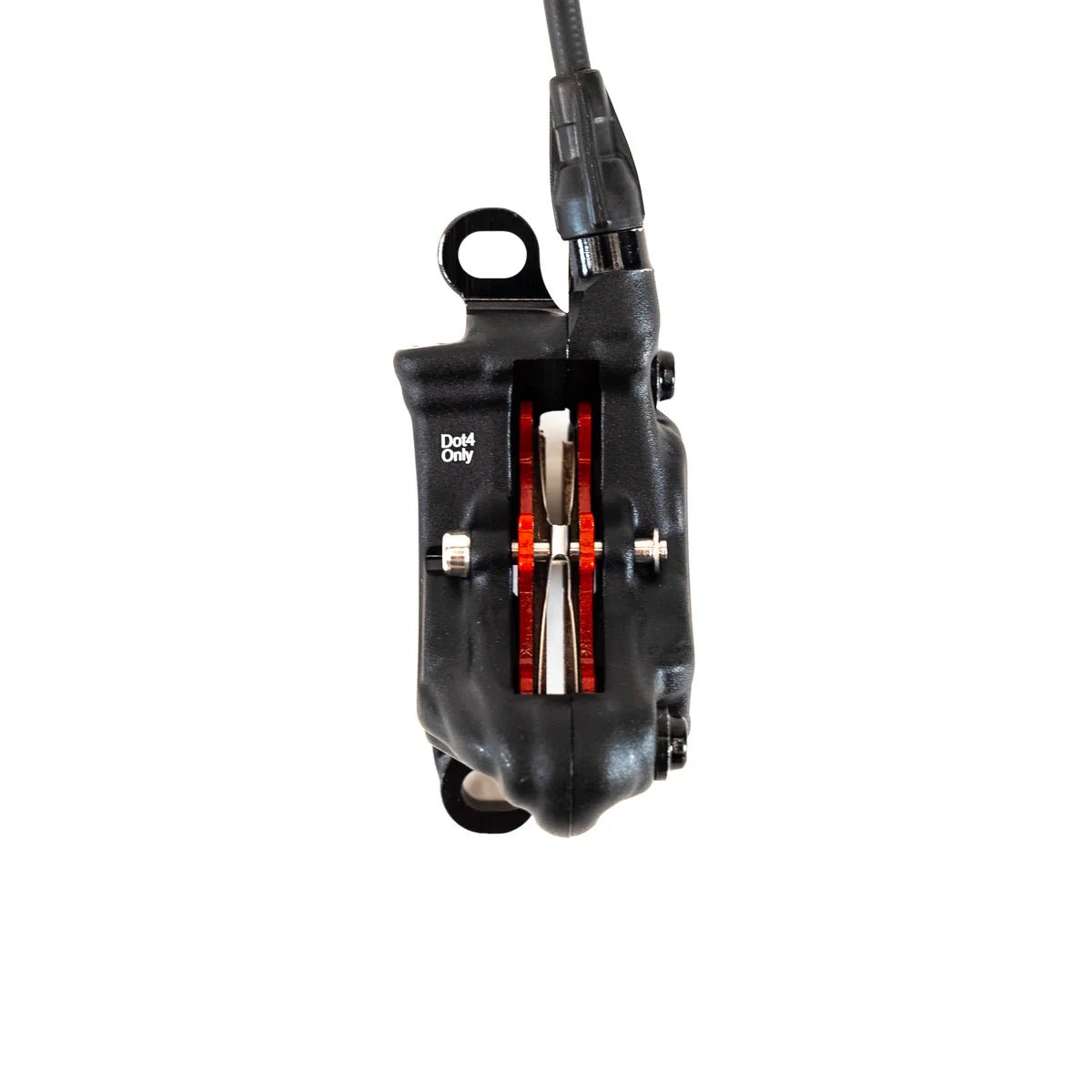

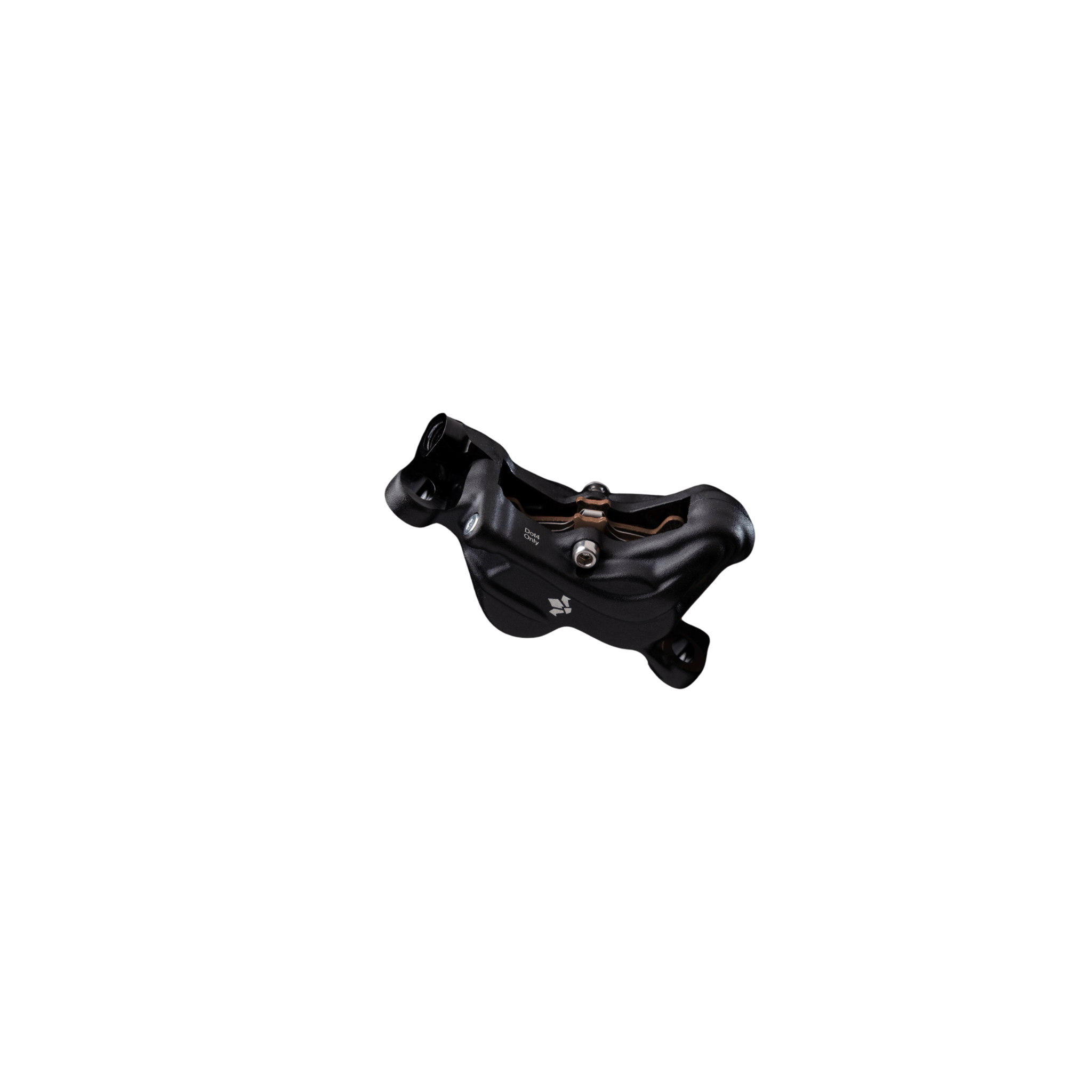

The four-piston calipers match the power of the master-cylinder in a compact format suited to lightweight eMotos.

With sintered brake pads included, the system is designed to handle the speed and weight of lightweight eMotos on any terrain.

Compatibility

The eMoto brake fits the stock forks on all Surron LightBee, Talaria Sting and E-Ride Pro models via a PM6 Mount.

Does not fit bikes that come with DOT brakes from the factory (E Ride Pro 3.0/SR, Talaria MX5, Altis Sigma, etc).

Post-mount adapter kits are available separately for compatibility with disc sizes up to 230mm. Caliper fits rotors up to 3mm thick.

Pre-cut hoses: 115cm front, 160cm rear (Surron Light Bee / Talaria Sting fitment), or customizable hose available.

Reliability

Uses DOT 4 oil for consistent brake temperature control. Forged, anodized aluminum components for strength and durability.

Fitment

• Talaria MX3 / MX4 / XXX
• SurRon LBX, LBS, L1E
• Segway X-260 / X-160
• E-Ride Pro S / SS 1.0/2.0
• Rawrr Mantis
• 79 Bike Falcon M
• Ventus One
• RFN Apollo
• Rerode R1

Technical Specifications

Front Brake — Master Cylinder: forged/anodized aluminum body, black anodized clamp, adjustable ball-end lever. Caliper: PM6 type, 4x18mm phenolic pistons, sintered pads, black anodized body, rotor compatibility 160-203mm (adapter kit for up to 230mm), rotor thickness up to 3mm.

Rear Brake — Master Cylinder: black anodized body and clamp. Caliper: PM6 type, 4x18mm phenolic pistons, sintered pads, black anodized body, rotor compatibility 160-203mm (adapter kit for up to 230mm), rotor thickness up to 3mm.
